WBR EXTRA XHRL1290W | Wybor battery

Specification

Rated voltage|12 V (6 elements in the block)

Weight|6.3 kg ±3 %

Rated power (при 25 °С)|90 Vт/эл. at 15-minute discharge to Uкон. 1.60 V/эл.

Nominal capacity (при 25 °С)|21 Ah at 20-hour discharge to Uкон. 1.75 V/эл.

Maximum discharge current (5 sec)|300 А

Internal resistance|9 mOhm

Operating temperature range|Discharge -40…+60 °С, Charge -20…+60 °С, Storage -40…+60 °С

Optimal operating temperature|25 °С

Charge voltage at 25 °С|13.5-13.8 V (температурный коэффициент -3 мВ/°С/эл.)

Maximum charge current|6 А at 25 °С

Charge voltage (циклический режим) at 25 °С|14.4-15.0 V (температурный коэффициент -5 мВ/°С/эл.)

Self-discharge|Батареи WBR EXTRA серии XHRL can be stored to 6 months*

Terminals|Под внутренний болт М5 (torque bolts 4–6 Н·м)

Housing material|Shockproof ABS (acrylic butadiene styrene)

*The battery must be charged before use. At higher ambient temperatures, storage time is reduced
*The content may be changed for improvement without prior notice, it is not a public offer.
*The appearance of the product may differ from that shown on the website.

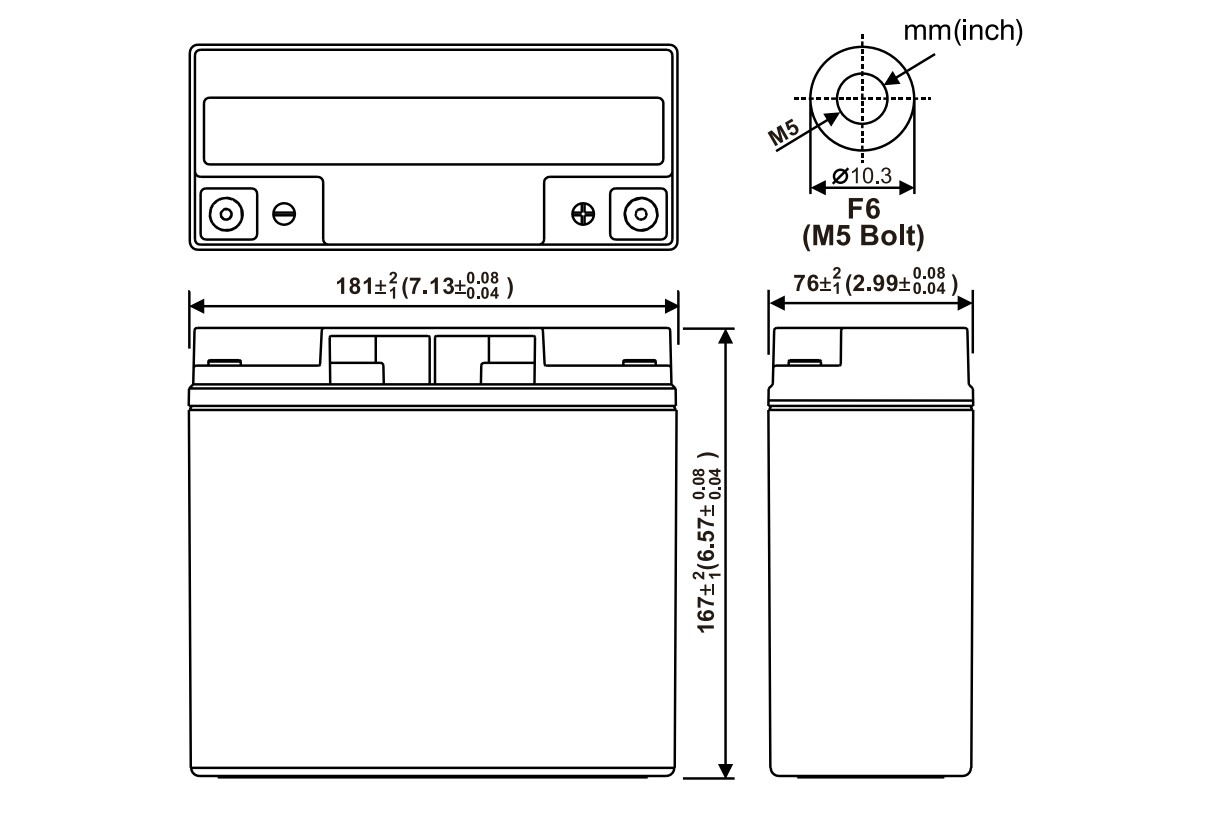

Dimensions

Length

181

Width

76

Height

167

Height (full)

167

181

76

167

Direct current discharge: А (25°С)

Tdischarge / Uk	1.85B	1.80B	1.75B	1.70B	1.67B	1.65B	1.60B
2 min	112	128	135	142	148	154	159
4 min	78.5	97.2	104	109	113	116	118
5 min	73.4	81.4	88.5	93.2	96.5	99.0	101
8 min	61.5	65.7	69.5	71.2	72.4	73.3	73.9
10 min	51.2	55.0	57.2	58.8	60.0	61.2	62.2
15 min	40.0	41.6	43.0	43.7	44.5	45.1	45.5
30 min	22.7	23.9	24.3	24.5	24.7	24.9	25.1
45 min	16.5	17.4	18.1	18.6	18.8	19.2	19.5
1 h	11.6	12.2	12.7	13.1	13.5	13.7	13.9
1.5 h	9.27	10.1	10.8	11.1	11.3	11.5	11.6
2 h	6.16	6.56	6.90	7.16	7.43	7.56	7.70
3 h	4.73	4.90	5.00	5.08	5.11	5.17	5.21
4 h	3.88	3.97	4.04	4.09	4.12	4.15	4.17
5 h	3.30	3.37	3.42	3.46	3.48	3.50	3.51
8 h	2.14	2.23	2.30	2.32	2.33	2.34	2.35
10 h	1.90	1.96	2.00	2.02	2.03	2.04	2.05
20 h	0.952	0.984	1.01	1.03	1.04	1.05	1.05

Constant power discharge: W/El (25°С)

Tdischarge / Uk	1.85B	1.80B	1.75B	1.70B	1.67B	1.65B	1.60B
2 min	199	228	250	259	267	271	274
4 min	162	180	191	198	200	202	204
5 min	148	161	169	175	178	181	184
8 min	115	123	127	131	134	136	138
10 min	93.4	101	108	110	112	114	116
15 min	65.2	72.2	78.4	79.2	80.0	80.6	81.0
30 min	39.5	43.2	46.2	47.0	47.6	48.2	48.6
45 min	34.9	35.8	36.6	37.1	37.6	37.9	38.2
1 h	22.7	23.8	24.6	25.4	26.2	26.6	26.8
1.5 h	18.5	19.3	19.8	20.1	20.3	20.5	20.6
2 h	12.2	12.7	13.0	13.5	13.6	13.7	13.8
3 h	9.53	9.88	10.1	10.3	10.4	10.5	10.6
4 h	7.63	7.93	8.12	8.22	8.32	8.40	8.46
5 h	6.65	6.88	7.00	7.10	7.13	7.16	7.18
8 h	4.59	4.75	4.83	4.88	4.91	4.93	4.95
10 h	3.55	3.72	3.80	3.82	3.84	3.86	3.88
20 h	1.92	1.98	2.02	2.06	2.09	2.12	2.15
