WBR EXTRA XHRL1230W | Wybor battery

Specification

Rated voltage|12 V (6 elements in the block)

Weight|2.3 kg ±3 %

Rated power (при 25 °С)|30 Vт/эл. at 15-minute discharge to Uкон. 1.60 V/эл.

Nominal capacity (при 25 °С)|8 Ah at 20-hour discharge to Uкон. 1.75 V/эл.

Maximum discharge current (5 sec)|130 А

Internal resistance|19 mOhm

Operating temperature range|Discharge -40…+60 °С, Charge -20…+60 °С, Storage -40…+60 °С

Optimal operating temperature|25 °С

Charge voltage at 25 °С|13.5-13.8 V (температурный коэффициент -3 мВ/°С/эл.)

Maximum charge current|2.4 А at 25 °С

Charge voltage (циклический режим) at 25 °С|14.4-15.0 V (температурный коэффициент -5 мВ/°С/эл.)

Self-discharge|Батареи WBR EXTRA серии XHRL can be stored to 6 months*

Terminals|F2

Housing material|Shockproof ABS (acrylic butadiene styrene)

*The battery must be charged before use. At higher ambient temperatures, storage time is reduced
*The content may be changed for improvement without prior notice, it is not a public offer.
*The appearance of the product may differ from that shown on the website.

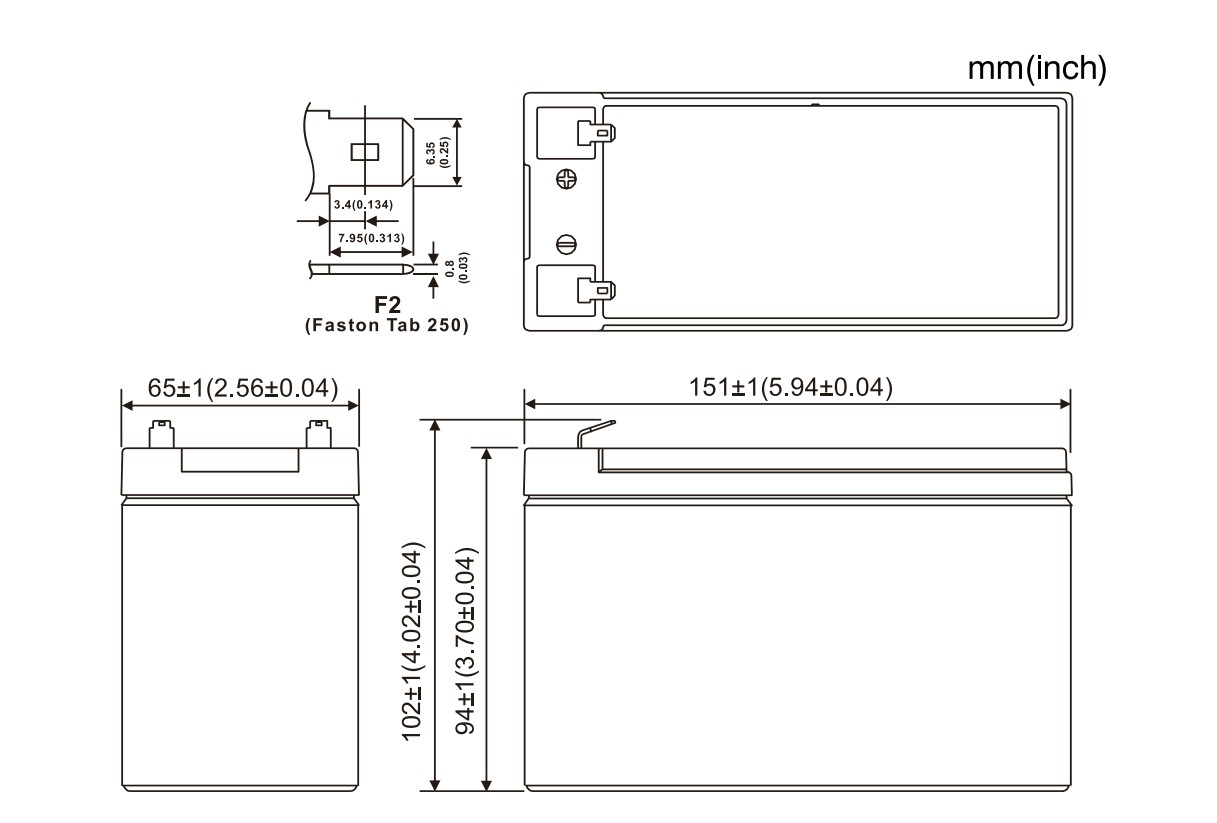

Dimensions

Length

151

Width

65

Height

94

Height (full)

102

151

65

94

102

Direct current discharge: А (25°С)

UK/Tdischarge	2 min	4 min	5 min	6 min	8 min	10 min	15 min	20 min	30 min	45 min	1 h	1.5 h	2 h	3 h	4 h	5 h	8 h	10 h	20 h
1.85 V	35.9	29.5	25.6	23.2	19.8	17.5	14.2	11.54	8.61	6.24	4.96	3.41	3	1.83	1.42	1.23	0.829	0.687	0.359
1.80 V	41.2	32.3	28.8	25.9	21.9	19.2	15.1	12.14	8.92	6.44	5.11	3.53	2.71	1.89	1.49	1.28	0.864	0.717	0.376
1.75 V	47.7	35.2	31.5	28.1	23.5	20.4	15.6	12.50	9.14	6.59	5.23	3.61	2.78	1.95	1.54	1.36	0.917	0.760	0.400
1.70 V	54.4	37.9	33.6	29.6	24.3	20.8	15.9	12.73	9.30	6.72	5.34	3.69	2.84	2.00	1.57	1.38	0.928	0.769	0.403
1.67 V	58.2	39.4	34.8	30.5	24.7	21.0	16.0	12.82	9.38	6.77	5.37	3.71	2.86	2.02	1.58	1.39	0.934	0.773	0.405
1.65 V	58.5	39.8	35.8	31.2	25.2	21.3	16.2	12.95	9.45	6.81	5.40	3.75	2.89	2.04	1.59	1.40	0.940	0.778	0.408
1.60 V	62.4	42.0	36.3	31.8	25.8	22.0	16.5	13.18	9.61	6.90	5.46	3.79	2.92	2.07	1.61	1.41	0.951	0.789	0.413

Constant power discharge: W/El (25°С)

UK/Tdischarge	2 min	4 min	5 min	6 min	8 min	10 min	15 min	20 min	30 min	45 min	1 h	1.5 h	2 h	3 h	4 h	5 h	8 h	10 h	20 h
1.85 V	65.3	55.4	49.2	44.5	37.9	33.5	25.0	20.6	15.7	12.00	9.92	6.93	5.37	3.82	2.96	2.49	1.68	1.39	0.750
1.80 V	75.8	62.5	54.0	48.8	41.6	36.7	27.0	22.0	16.5	12.45	10.2	7.14	5.54	3.94	3.09	2.59	1.75	1.45	0.783
1.75 V	84.6	65.9	57.9	52.0	44.0	38.6	28.5	23.0	17.0	12.8	10.4	7.28	5.65	4.04	3.18	2.68	1.84	1.54	0.824
1.70 V	92.4	69.0	60.9	54.1	44.9	38.9	29.5	23.8	17.5	13.1	10.6	7.41	5.75	4.13	3.23	2.75	1.87	1.56	0.832
1.67 V	96.7	70.6	62.2	55.2	45.6	39.4	29.8	24.0	17.7	13.1	10.6	7.43	5.77	4.17	3.25	2.78	1.88	1.56	0.835
1.65 V	97.2	71.0	62.5	55.4	45.9	39.6	30.1	24.3	17.9	13.2	10.6	7.47	5.83	4.22	3.28	2.80	1.89	1.57	0.842
1.60 V	105.2	73.4	64.2	57.0	47.2	40.8	30.6	24.6	18.1	13.4	10.8	7.58	5.89	4.26	3.32	2.82	1.91	1.59	0.851
