CSB HR 1224W F2 F1
CSB HR 1224W F2 F1
![](https://wybor-battery.com/sites/default/files/styles/300x300/public/images/hr1224wf2f.jpg?itok=2avZUtPJ)
Specification
Number of elements in the block
6
Rated voltage
12 V
Мощность
24 Vт/Эл at 15-minute discharge to Uкон. - 1.67 W/El at 25 °С
Weight
1.95 kg
Maximum discharge current
100 A / 130 A(5 sec)
Internal resistance
20.6 mOhm
Operating temperature range
Discharge: from -15 °С to +50 °С, Charge: from -15 °С to +40 °С, Storage: from -15 °С to +40 °С, Working temperature: 25 °С
Charge voltage
13.5 - 13.8 V at 25 °С
Maximum charge current
2.4 A
Charge voltage in equalization mode
14.4 - 15.0 V at 25 °С
Self-discharge
Less 10% for 90 days. Can be stored without recharging for more than 6 months at +25 °C*
Terminals
F1 / F2 - Faston Tab 187 / 250
Housing material
Shockproof, wear-resistant ABS (UL94-HB)
*The battery must be charged before use. At higher ambient temperatures, storage time is reduced
Dimensions
Length
151
Width
51
Height
94.3
Height (full)
98.6

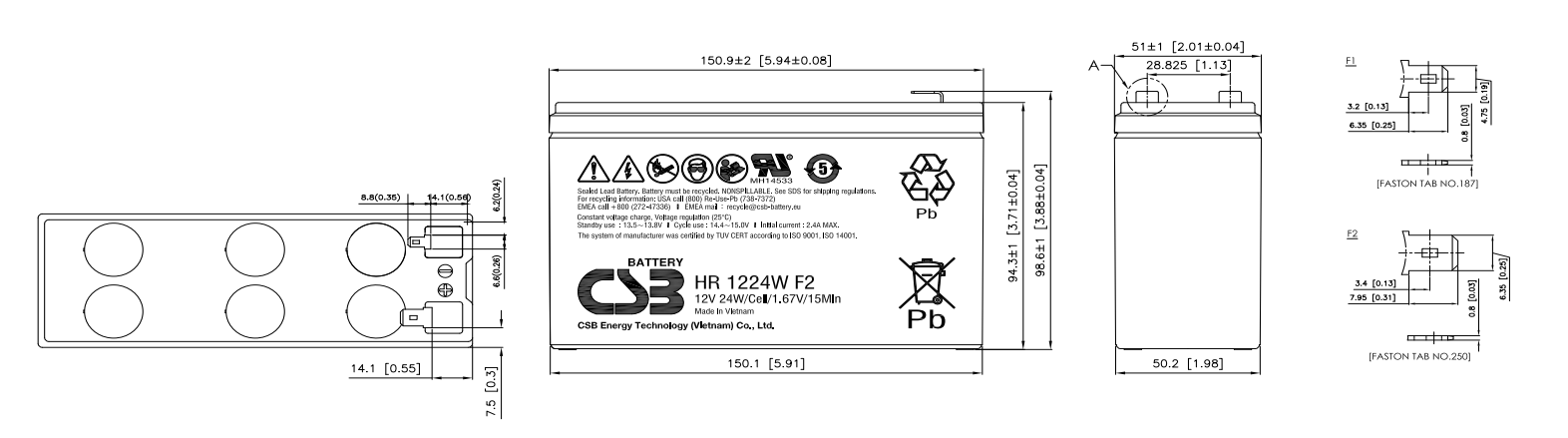

![](https://wybor-battery.com/sites/default/files/blueprints/m_merged_11_0.png)
Direct current discharge: А (25°С)
Uк / Tdischarge | 2 min | 4 min | 5 min | 6 min | 8 min | 10 min | 15 min | 20 min | 30 min | 45 min | 60 min | 90 min |
1.60 V | 47.5 | 33.0 | 29.0 | 26.1 | 22.0 | 18.9 | 14.0 | 11.0 | 7.95 | 5.54 | 4.29 | 3.43 |
1.67 V | 44.1 | 31.1 | 27.4 | 24.7 | 21.0 | 18.0 | 13.5 | 10.6 | 7.76 | 5.42 | 4.20 | 3.34 |
1.70 V | 42.7 | 30.3 | 26.7 | 24.0 | 20.5 | 17.6 | 13.2 | 10.5 | 7.67 | 5.35 | 4.15 | 3.30 |
1.75 V | 40.5 | 28.8 | 25.4 | 23.0 | 19.8 | 17.0 | 12.8 | 10.2 | 7.56 | 5.29 | 4.10 | 3.26 |
1.80 V | 38.4 | 27.4 | 24.4 | 22.2 | 19.1 | 16.4 | 12.5 | 10.0 | 7.49 | 5.23 | 4.06 | 3.22 |
1.85 V | 36.4 | 26.0 | 23.3 | 21.3 | 18.5 | 16.0 | 12.1 | 9.84 | 7.44 | 5.21 | 4.04 | 3.19 |
Constant power discharge: W/BLOCK (25°С)
Uк / Tdischarge | 2 min | 4 min | 5 min | 6 min | 8 min | 10 min | 15 min | 20 min | 30 min | 45 min | 60 min | 90 min |
1.60 V | 570 | 396 | 348 | 313 | 264 | 228 | 168 | 132 | 95.4 | 66.5 | 51.5 | 41.2 |
1.67 V | 529 | 373 | 329 | 297 | 251 | 217 | 162 | 128 | 92.9 | 64.9 | 50.3 | 40.2 |
1.70 V | 512 | 363 | 320 | 289 | 246 | 212 | 159 | 126 | 92.1 | 64.4 | 49.9 | 39.7 |
1.75 V | 486 | 346 | 306 | 277 | 238 | 204 | 154 | 123 | 90.8 | 63.5 | 49.3 | 39.2 |
1.80 V | 461 | 329 | 293 | 266 | 229 | 197 | 149 | 121 | 89.9 | 62.9 | 48.8 | 38.8 |
1.85 V | 437 | 314 | 281 | 256 | 219 | 187 | 144 | 119 | 89.2 | 62.5 | 48.5 | 38.6 |
