WBR MBC12-90-2

Send request Specifications

Specification

Rated voltage:

12 V (6 элементов)

Nominal capacity (С20):

90 Ah

Cold start current (ССА):

620 А (при −17.8 °С); Морской пусковой ток 775 А (при 0 °С)

Weight:

25 kg ±3 %

Life time:

10 years in buffer mode at 25 °С

Capacity на режимах:

76 Aч at 10-ч. discharge at 25 °С to Uкон. 10.5 V, 68 Aч at 5-ч. discharge at 25 °С to Uкон. 10.2 V

Internal resistance:

5 mOhm

Maximum charge current:

24 А

Charge voltage (при 25 °С):

Cyclic mode 13.8–14.6 V (темп. коэфф. −5 мВ/°С/эл.)

Режим recharge:

13.4–13.6 V (темп. коэфф. −3 мВ/°С/эл.)

Operating temperature (Оптимально 25±3 °С):

Charge −20…+60 °С, Discharge −40…+60 °С, Storage −40…+60 °С

Self-discharge:

3 % в month at 25 °С

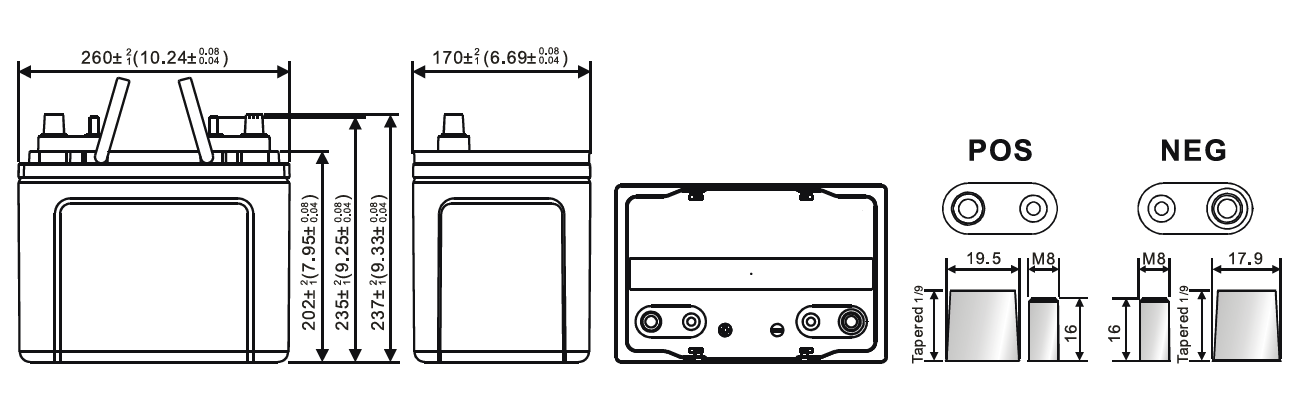

Terminals:

Под конус: «+» 19.5 мм; «−» 17.9 мм. Резьбовое соединение М8 (torque 12–20 Нм)

Sealing technology:

AGM

Housing material:

Shockproof ABS (acrylic butadiene styrene)

*The battery must be charged before use. At higher ambient temperatures, storage time is reduced
*The content may be changed for improvement without prior notice, it is not a public offer.
*The appearance of the product may differ from that shown on the website.
