WBR MBG150-12
WBR MBG150-12

Specification
Number of elements in the block:
6
Rated voltage:
12 V
Nominal capacity (C10):
150 Aч
Cold start current (ССА):
700 А (при −18 °С)
Weight:
45.8 kg ±3 %
Life time:
10 years in buffer mode at 25 °С
Capacity на режимах (при 25 ̊С):
127.50 Aч at 5-ч. discharge at 25 °С to Uкон. 10.20 V, 82.50 Aч at 1-ч. discharge at 25 °С to Uкон. 9.60 V
Internal resistance:
4.7 mOhm
Maximum discharge current:
1500 A (5 sec)
Maximum charge current:
45.0 А
Charge voltage (при 25 °С):
Cyclic mode 13.8 – 14.4 V (темп. коэфф. −5 мВ/°С/эл.), Режим recharge 13.5 – 13.8 V (темп. коэфф. −3 мВ/°С/эл.)
Operating temperature range:
Discharge: from -40 °С to +60 °С, Charge: from -20 °С to +60 °С, Storage: from -40 °С to +60 °С
Self-discharge:
3 % в month at 25 °С
Terminals:
Под внутренний болт М8 (torque 12–20 Нм)
Sealing technology:
GEL
Housing material:
Shockproof ABS (acrylic butadiene styrene)
*The battery must be charged before use. At higher ambient temperatures, storage time is reduced
*The content may be changed for improvement without prior notice, it is not a public offer.

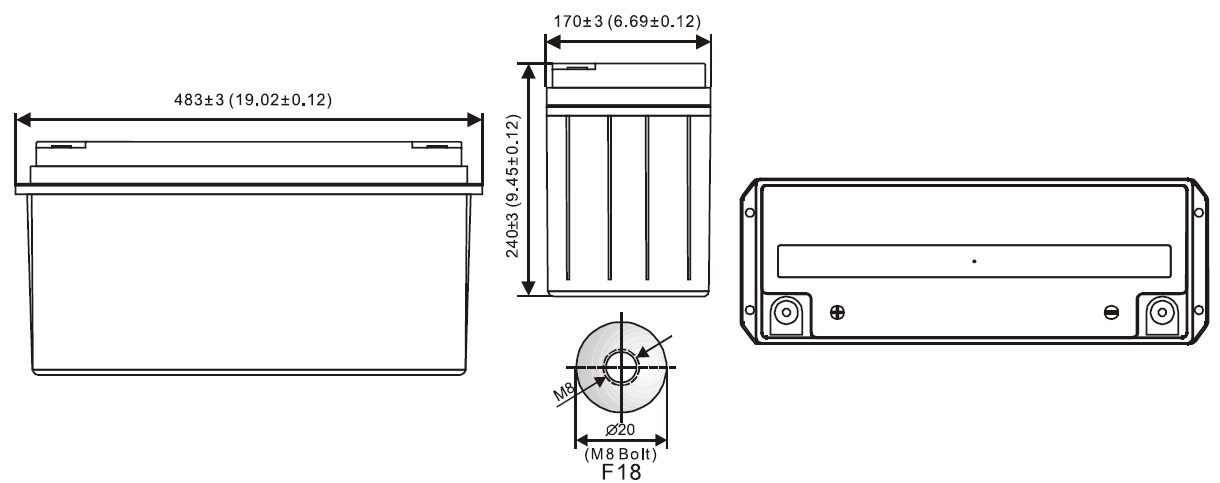

Dimensions
Length
483
Width
170
Height
240
Height (full)
240

Direct current discharge: А (25°С)
Tdischarge / Uk | 1.85 V | 1.80 V | 1.75 V | 1.70 V | 1.67 V | 1.65 V | 1.60 V |
5 min | 278 | 329 | 381 | 407 | 436 | 450 | 455 |
10 min | 222 | 253 | 283 | 299 | 314 | 322 | 328 |
15 min | 190 | 212 | 233 | 243 | 253 | 259 | 265 |
20 min | 163 | 179 | 194 | 201 | 209 | 212 | 218 |
30 min | 129 | 139 | 147 | 151 | 155 | 157 | 163 |
1 h | 78.5 | 81.5 | 83.3 | 84.3 | 85.3 | 85.9 | 89.5 |
1.5 h | 64.2 | 67.8 | 68.8 | 69.5 | 69.7 | 69.9 | 70.9 |
2 h | 51.7 | 54.4 | 55.2 | 55.8 | 56.0 | 56.2 | 56.8 |
3 h | 36.4 | 38.1 | 38.7 | 39.1 | 39.2 | 39.4 | 39.8 |
4 h | 28.3 | 29.6 | 30.1 | 30.4 | 30.5 | 30.6 | 30.8 |
5 h | 22.9 | 23.8 | 24.2 | 24.4 | 24.6 | 24.6 | 24.8 |
8 h | 15.5 | 16.2 | 16.3 | 16.5 | 16.6 | 16.6 | 16.7 |
10 h | 14.4 | 14.9 | 15.0 | 15.2 | 15.2 | 15.3 | 15.4 |
20 h | 7.19 | 7.38 | 7.50 | 7.58 | 7.63 | 7.64 | 7.66 |
Constant power discharge: W/El (25°С)
Tdischarge / Uk | 1.85 V | 1.80 V | 1.75 V | 1.70 V | 1.67 V | 1.65 V | 1.60 V |
5 min | 497 | 587 | 680 | 727 | 777 | 803 | 810 |
10 min | 407 | 464 | 520 | 547 | 576 | 591 | 601 |
15 min | 349 | 389 | 427 | 445 | 464 | 474 | 485 |
20 min | 313 | 344 | 372 | 385 | 399 | 407 | 418 |
30 min | 249 | 268 | 284 | 292 | 300 | 304 | 314 |
1 h | 156 | 162 | 165 | 167 | 169 | 170 | 178 |
1.5 h | 128 | 135 | 137 | 138 | 139 | 139 | 141 |
2 h | 103 | 108 | 110 | 111 | 112 | 112 | 113 |
3 h | 72.8 | 76.1 | 77.3 | 78.1 | 78.4 | 78.7 | 79.5 |
4 h | 56.9 | 59.5 | 60.3 | 60.9 | 61.3 | 61.4 | 61.9 |
5 h | 45.9 | 47.8 | 48.6 | 49.1 | 49.2 | 49.4 | 49.9 |
8 h | 31.2 | 32.5 | 32.9 | 33.3 | 33.4 | 33.6 | 33.7 |
10 h | 29.0 | 30.0 | 30.4 | 30.7 | 30.9 | 30.9 | 31.2 |
20 h | 14.5 | 14.9 | 15.1 | 15.3 | 15.4 | 15.4 | 15.4 |
