WBR MB150-12
WBR MB150-12

Specification
Number of elements in the block:
6
Rated voltage:
12 V
Nominal capacity (С10):
150 Ah
Cold start current (ССА):
750 А (при −18 °С)
Weight:
45.5 kg ±3 %
Life time:
to 10 years in buffer mode at 25 °С
Capacity на режимах:
127.5 Aч at 5-ч. discharge electric 25.5 А at 25 °С to Uкон. 10.20 V, 90.0 Aч at 1-ч. discharge electric 90.0 А at 25 °С to Uкон. 9.60 V
Internal resistance:
4.8 mOhm
Maximum discharge current:
1500 А (5 sec)
Maximum charge current:
45.0 А
Charge voltage (при 25 °С):
Cyclic mode 14.4 – 15.0 V (темп. коэфф. −5 мВ/°С/эл.), Режим recharge 13.5 – 13.8 V (темп. коэфф. −3 мВ/°С/эл.)
Operating temperature (Оптимально 25 ± 3 °С):
Discharge: from -40 ˚С to +60 ˚С, Charge: from -20 ˚С to +60 ˚С, Storage: from -40 ˚С to + 60 ˚С
Self-discharge:
3% в month at 25 ˚С
Terminals:
Под внутренний болт М8 (torque 12–20 Нм)
Sealing technology:
AGM
Housing material:
Shockproof ABS (acrylic butadiene styrene)
*The battery must be charged before use. At higher ambient temperatures, storage time is reduced
*The content may be changed for improvement without prior notice, it is not a public offer.

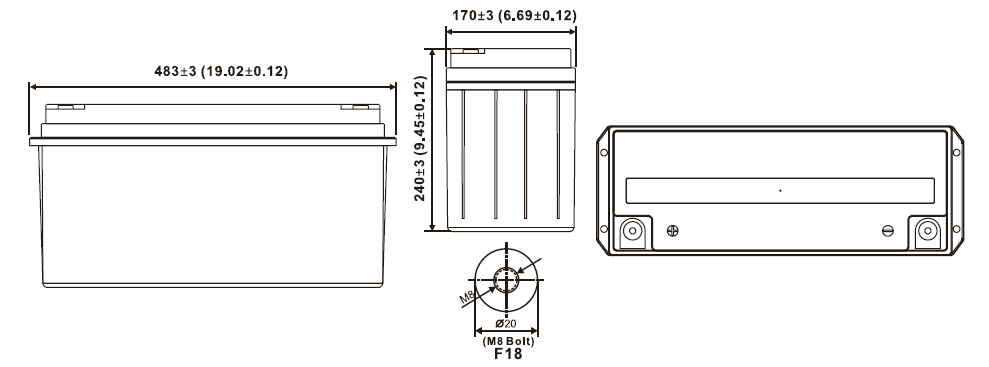

Dimensions
Length
483
Width
170
Height
240
Height (full)
240

Direct current discharge: А (25°С)
Tdischarge \ Uk | 1.85 V | 1.80 V | 1.75 V | 1.70 V | 1.67 V | 1.65 V | 1.60 V |
10 min | 221 | 252 | 282 | 297 | 312 | 320 | 326 |
15 min | 196 | 219 | 240 | 250 | 261 | 267 | 273 |
20 min | 168 | 185 | 200 | 207 | 215 | 219 | 225 |
30 min | 133 | 143 | 152 | 156 | 160 | 162 | 168 |
1 h | 80.9 | 84.0 | 85.9 | 86.9 | 87.9 | 88.6 | 92.3 |
1.5 h | 66.2 | 69.9 | 70.9 | 71.6 | 71.9 | 72.1 | 73.1 |
2 h | 53.3 | 56.1 | 56.9 | 57.5 | 57.7 | 57.9 | 58.6 |
3 h | 37.5 | 39.3 | 39.9 | 40.3 | 40.4 | 40.6 | 41.0 |
4 h | 29.2 | 30.5 | 31.0 | 31.3 | 31.4 | 31.5 | 31.8 |
5 h | 24.1 | 25.1 | 25.5 | 25.7 | 25.9 | 25.9 | 26.1 |
8 h | 16.3 | 17.0 | 17.2 | 17.4 | 17.5 | 17.5 | 17.6 |
10 h | 14.5 | 15.0 | 15.1 | 15.2 | 15.2 | 15.3 | 15.3 |
20 h | 7.30 | 7.52 | 7.56 | 7.60 | 7.64 | 7.68 | 7.70 |
Constant power discharge: W/El (25°С)
Tdischarge \ Uk | 1.85 V | 1.80 V | 1.75 V | 1.70 V | 1.67 V | 1.65 V | 1.60 V |
10 min | 405 | 461 | 517 | 544 | 573 | 587 | 598 |
15 min | 359 | 401 | 440 | 459 | 478 | 489 | 500 |
20 min | 322 | 354 | 383 | 397 | 411 | 419 | 431 |
30 min | 257 | 276 | 293 | 301 | 309 | 313 | 324 |
1 h | 161 | 167 | 170 | 172 | 174 | 176 | 183 |
1.5 h | 132 | 139 | 141 | 142 | 143 | 143 | 145 |
2 h | 106 | 112 | 113 | 114 | 115 | 115 | 117 |
3 h | 75.0 | 78.5 | 79.7 | 80.5 | 80.9 | 81.1 | 81.9 |
4 h | 58.7 | 61.3 | 62.2 | 62.8 | 63.1 | 63.3 | 63.9 |
5 h | 48.3 | 50.4 | 51.1 | 51.6 | 51.9 | 52.0 | 52.5 |
8 h | 32.9 | 34.1 | 34.6 | 35.0 | 35.2 | 35.3 | 35.5 |
10 h | 29.3 | 30.3 | 30.7 | 31.0 | 31.2 | 31.2 | 31.5 |
20 h | 14.8 | 15.3 | 15.6 | 15.9 | 16.1 | 16.1 | 16.2 |
