Аккумулятор WBR MB100-12 оптом

Specification

Number of elements in the block:

6

Rated voltage:

12 V

Nominal capacity (С20):

100 Ah

Cold start current (ССА):

500 А (при −18 °С)

Weight:

31.3 kg ± 3 %

Life time:

to 10 years in buffer mode at 25 °С

Capacity на режимах:

85.00 Aч at 5-ч. discharge electric 17.00 А at 25 °С to Uкон. 10.20 V, 60.00 Aч at 1-ч. discharge electric 60.00 А at 25 °С to Uкон. 9.60 V

Internal resistance:

4.0 mOhm

Maximum discharge current:

1200 А (5 sec)

Maximum charge current:

30.0 A

Charge voltage (при 25 °С):

Cyclic mode 14.4 – 15.0 V (темп. коэфф. −5 мВ/°С/эл.), Режим recharge 13.5 – 13.8 V (темп. коэфф. −3 мВ/°С/эл.)

Operating temperature (Оптимально 25 ± 3 °С):

Discharge: from -40 ˚С to +60 ˚С, Charge: from -20 ˚С to +60 ˚С, Storage: from -40 ˚С to + 60 ˚С

Self-discharge:

3% в month at 25 ˚С

Terminals:

Под внутренний болт М8 (torque 12–20 Нм)

Sealing technology:

AGM

Housing material:

Shockproof ABS (acrylic butadiene styrene)

*The battery must be charged before use. At higher ambient temperatures, storage time is reduced
*The content may be changed for improvement without prior notice, it is not a public offer.

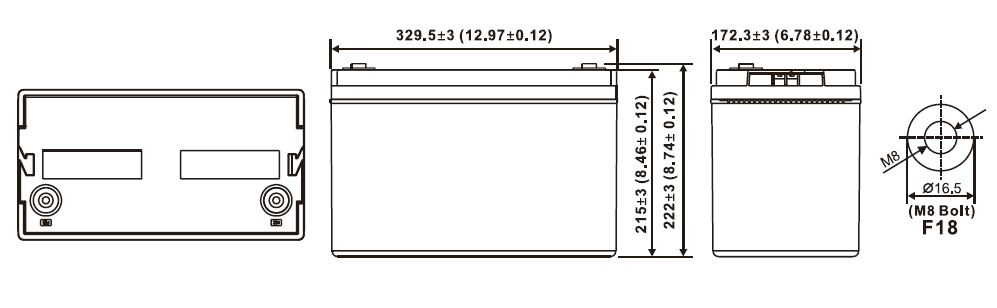

Dimensions

Length

329.5

Width

172.3

Height

215

Height (full)

222

329.5

172.3

215

222

Direct current discharge: А (25°С)

Tdischarge \ Uk	1.85 V	1.80 V	1.75 V	1.70 V	1.65 V	1.60 V
10 min	170	205	235	256	274	287
15 min	163	181	191	200	206	212
20 min	134	147	160	166	174	183
30 min	106	114	118	123	127	132
45 min	82.7	86.1	89.1	91.1	93.1	95.0
1 h	61.0	65.3	69.5	71.7	72.8	73.9
1.5 h	44.2	47.3	49.4	50.2	50.8	51.3
3 h	28.3	29.1	29.8	30.4	30.7	30.9
5 h	17.1	17.9	18.7	18.9	19.1	19.3
8 h	11.0	11.9	12.3	12.5	12.8	12.9
10 h	9.81	10.1	10.3	10.5	10.7	10.8
20 h	5.13	5.28	5.42	5.45	5.48	5.50

Constant power discharge: W/El (25°С)

Tdischarge \ Uk	1.85 V	1.80 V	1.75 V	1.70 V	1.65 V	1.60 V
10 min	303	358	412	436	461	476
15 min	295	327	340	358	378	385
20 min	246	268	295	308	320	329
30 min	210	220	233	236	239	241
45 min	147	159	167	175	179	182
1 h	128	134	140	143	145	147
1.5 h	88.9	92.1	94.6	96.7	98.7	100
3 h	50.4	53.7	55.8	57.6	58.6	59.2
5 h	33.8	35.5	37.3	37.7	38.0	38.3
8 h	20.2	22.5	23.2	23.7	24.2	24.4
10 h	19.2	19.9	20.2	20.5	20.8	21.0
20 h	10.5	10.8	11.1	11.2	11.4	11.6
