STAR DJM1280 | Wybor battery

Specification

Rated voltage|12 V (6 elements in the block)

Nominal capacity (C10)|80 Aч at 10-hour discharge to Uкон. - 1.8 W/El at 25 °С

Internal resistance|5 mOhm

Operating temperature range|Discharge : -40 ˚С ~ 60 ˚С, Charge : -20 ˚С ~ 60 ˚С, Storage : -40 ˚С ~ 60 ˚С

Rated operating temperature|25 ˚С

Constant voltage recharge|13.5 – 13.8 V at 25 ˚С (темп. коэф. -18 мВ/°С)

Maximum discharge current (5 sec)|700 A

Maximum charge current|24 A

Charge voltage|14.5 – 15.0 V at 25 ˚С (темп. коэф. -30 мВ/°С)

Self-discharge|Батареи STAR can be stored to 6 months at 25 °С, without recharge*

Housing material|Shockproof ABS (acrylic butadiene styrene)

Life time|Более 12 years in buffer mode at 25 ˚С

Length|260 ± 2 мм

Width|168 ± 2 мм

height (with terminals)|215 ± 2 мм

Weight|25.3 kg ± 3%

Terminals|for bolt М6 (torque – 5.1 Нм ± 0.6 Нм)

*The battery must be charged before use. At higher ambient temperatures, storage time is reduced
*The content may be changed for improvement without prior notice, it is not a public offer.
*The appearance of the product may differ from that shown on the website.

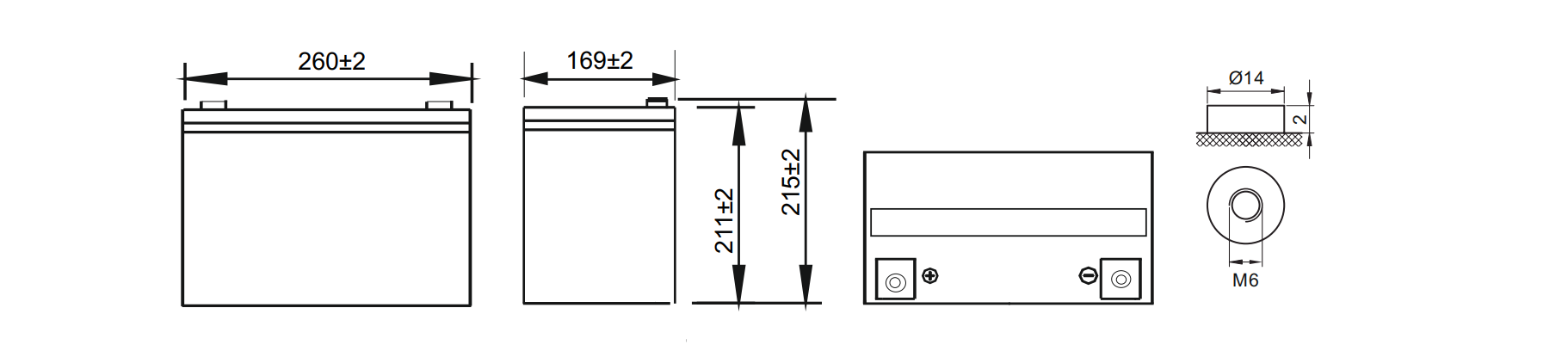

Dimensions

Length

260

Width

168

Height

211

Height (full)

215

260

168

211

215

Direct current discharge: А (25°С)

Uk / Tdischarge	10 min	15 min	30 min	60 min	2 h	3 h	4 h	5 h	8 h	10 h	20 h
9.60 V	179	138	82.4	50.7	30.0	21.6	17.2	14.7	10.1	8.35	4.42
9.90 V	173	134	80.8	49.9	29.8	21.5	17.1	14.6	10.1	8.33	4.42
10.2 V	166	129	78.3	48.6	29.5	21.3	17.0	14.5	9.99	8.31	4.40
10.5 V	159	125	76.4	47.1	29.1	21.2	16.9	14.4	9.92	8.26	4.38
10.8 V	150	118	73.6	45.6	28.3	20.5	16.4	14.0	9.62	8.20	4.35

Constant power discharge: W/BLOCK (25°С)

Uk / Tdischarge	10 min	15 min	30 min	60 min	2 h	3 h	4 h	5 h	8 h	10 h	20 h
9.60 V	1931	1513	925	578	347	254	203	174	120	99.7	53.1
9.90 V	1873	1476	906	569	345	252	201	173	120	99.5	53.0
10.2 V	1795	1422	878	555	342	251	200	172	119	99.2	52.8
10.5 V	1718	1373	857	537	337	249	199	171	118	98.6	52.5
10.8 V	1622	1301	826	520	328	241	193	165	114	97.9	52.2
