Аккумулятор CSB XHT8000FT оптом

Specification

Rated voltage

12 V (one element per block)

Rated power

8000 Vт at 5-мин. discharge to U 9.6 V, at +25 °С

Мощность на режимах

1831.17 Vт/эл. at 30-sec. discharge to Uкон 1.67 V/эл. at +25 °С; 1287.17 Vт/эл. at 5-мин. discharge to Uкон 1.67 V/эл. at +25 °С; 821.50 Vт/эл. at 15-мин. discharge to Uкон 1.67 V/эл. at +25 °С

Weight

66.6 kg

Operating temperature range

Discharge: from -40 °С to +65 °С, Charge: from -40 °С to +65 °С, Storage: from -40 °С to +65 °С, Working temperature: 25 °С

Maximum charge current

66.7 А

Maximum discharge current

1660 А (5 sec.)

Internal resistance

2.17 mOhm

Short circuit current

4570 А

Charge voltage

13.5 - 13.8 V at +25 °С

Charge voltage in equalization mode

14.4 - 15.0 V at +25 °С

Terminals

Под внутренний болт М6 (torque 5.1 ± 1.0 Нм)

Life time

Более 12 years in buffer mode at +25°С (до 10 years at +35°С)

Self-discharge

10% for 90 days at +25 °С

Storage

Батареи can be stored to 6 months at +25 °С without recharge

Housing material

Shockproof огнестойкий пластик РC-ABS (UL94-V0)

*The battery must be charged before use. At higher ambient temperatures, storage time is reduced
*The content may be changed for improvement without prior notice, it is not a public offer.
*The appearance of the product may differ from that shown on the website.

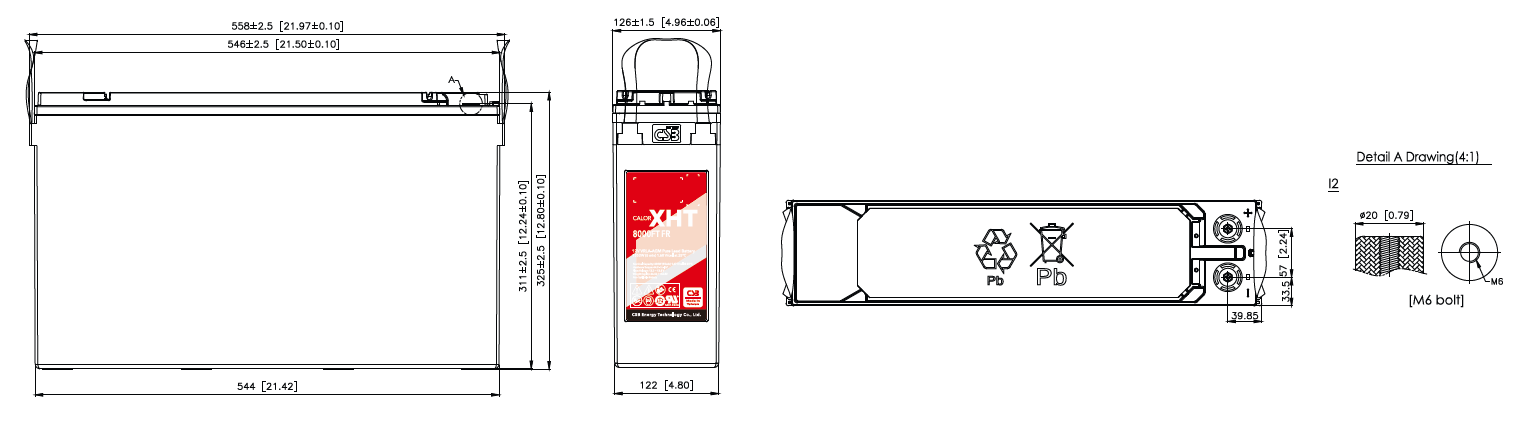

Dimensions

Length

558

Width

126

Height

311

Height (full)

325

558

126

311

325

Direct current discharge: А (25°С)

Uк. / T discharge	30 сек	60 сек	2 min	5 min	8 min	10 min	15 min	20 min	30 min	45 min	60 min	90 min
10.02 V	1101	1037	940	749	627	572	458	384	282	204	159	113
10.50 V	784	761	739	625	551	497	408	353	264	197	156	111
10.80 V	619	598	577	550	478	438	373	320	244	187	149	107

Constant power discharge: W/BLOCK (25°С)

Uк. / T discharge	30 сек	60 сек	2 min	5 min	8 min	10 min	15 min	20 min	30 min	45 min	60 min	90 min
10.02 V	10987	10314	9370	7723	6710	6074	4929	4117	3070	2289	1820	1307
10.50 V	9088	8834	8124	6846	5920	5388	4541	3791	2897	2213	1763	1278
10.80 V	7338	7076	6823	6201	5280	4892	4171	3482	2720	2105	1688	1236
