Аккумулятор CSB XHT7000FT оптом

Specification

Rated voltage

12 V (one element per block)

Rated power

7000 Vт at 5-мин. discharge to U 9.6 V, at +25 °С

Мощность на режимах

1766.00 Vт/эл. at 30-sec. discharge to Uкон 1.67 V/эл. at +25 °С; 1144.17 Vт/эл. at 5-мин. discharge to Uкон 1.67 V/эл. at +25 °С; 642.50 Vт/эл. at 15-мин. discharge to Uкон 1.67 V/эл. at +25 °С

Weight

50.9 kg

Operating temperature range

Discharge: from -40 °С to +65 °С, Charge: from -40 °С to +65 °С, Storage: from -40 °С to +65 °С, Working temperature: 25 °С

Maximum charge current

58.3 А

Maximum discharge current

1550 А (5 sec.)

Internal resistance

2.01 mOhm

Short circuit current

4132 А

Charge voltage

13.5 - 13.8 V at +25 °С

Charge voltage in equalization mode

14.4 - 15.0 V at +25 °С

Terminals

Под внутренний болт М6 (torque 5.1 ± 1.0 Нм)

Life time

Более 12 years in buffer mode at +25°С (до 10 years at +35°С)

Self-discharge

10% for 90 days at +25 °С

Storage

Батареи can be stored to 6 months at +25 °С without recharge

Housing material

Shockproof огнестойкий пластик РC-ABS (UL94-V0)

*The battery must be charged before use. At higher ambient temperatures, storage time is reduced
*The content may be changed for improvement without prior notice, it is not a public offer.
*The appearance of the product may differ from that shown on the website.

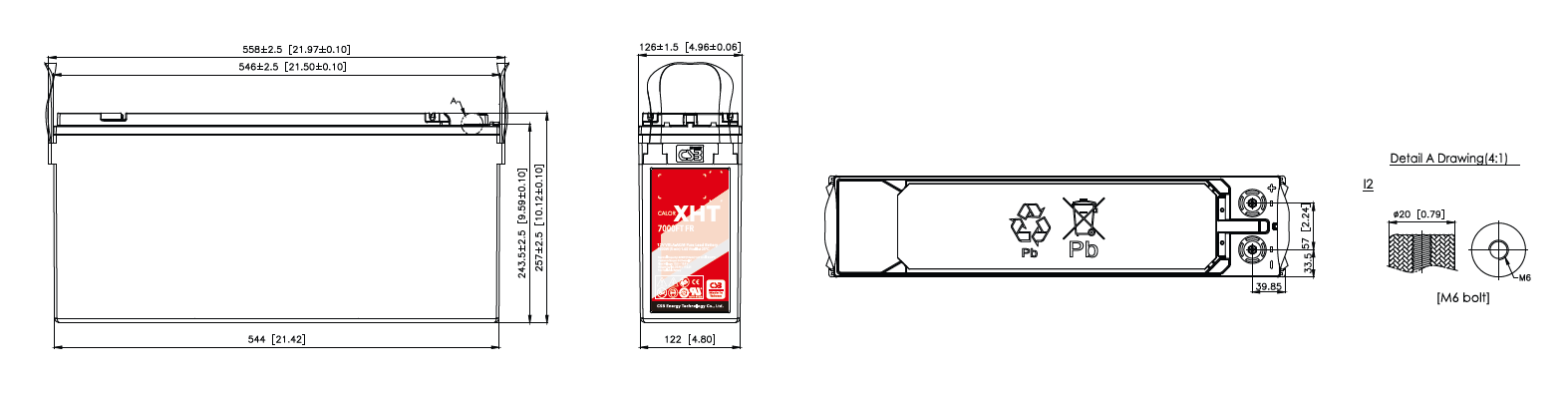

Dimensions

Length

558

Width

126

Height

243.5

Height (full)

257

558

126

243.5

257

Direct current discharge: А (25°С)

Uк. / T discharge	30 сек	60 сек	2 min	5 min	8 min	10 min	15 min	20 min	30 min	45 min	60 min	90 min
10.02 V	944	910	876	661	526	464	353	288	209	152	118	82.7
10.5 V	771	751	732	573	465	416	325	269	199	148	115	81.0
10.80 V	632	614	596	502	418	372	300	249	188	142	111	78.5

Constant power discharge: W/BLOCK (25°С)

Uк. / T discharge	30 сек	60 сек	2 min	5 min	8 min	10 min	15 min	20 min	30 min	45 min	60 min	90 min
10.02 V	10596	9998	8928	6865	5520	4902	3855	3191	2366	1754	1382	988
10.50 V	8937	8716	7674	6030	5019	4473	3629	3006	2269	1704	1349	970
10.80 V	7401	7192	6988	5474	4554	4118	3395	2814	2160	1637	1303	945
