CSB GPL 121000S FR
CSB GPL 121000S FR

Specification
Number of elements in the block
6
Rated voltage
12 V
Capacity
100 at 20-hour discharge to Uкон. - 1.75 W/El at 25 °С
Weight
29.30 kg
Maximum discharge current
800 A (5 sec)
Internal resistance
4.4 mOhm
Short circuit current
2171 A
Operating temperature range
Discharge: from -15 °С to +50 °С, Charge: from -15 °С to +40 °С, Storage: from -15 °С to +40 °С
Rated operating temperature
25 °С
Charge voltage
13.5 - 13.8 V at 25 °С
Maximum charge current
30.0 A
Charge voltage in equalization mode
14.4 - 15.0 V at 25 °С
Self-discharge
Less 10% for 90 days. Can be stored without recharging for more than 6 months at +25 °C.
Terminals
for bolt М6 (torque - 5.1 ± 1.0)
Housing material
Shockproof, wear-resistant PP (UL-V0)
*The battery must be charged before use. At higher ambient temperatures, storage time is reduced
*The content may be changed for improvement without prior notice, it is not a public offer.

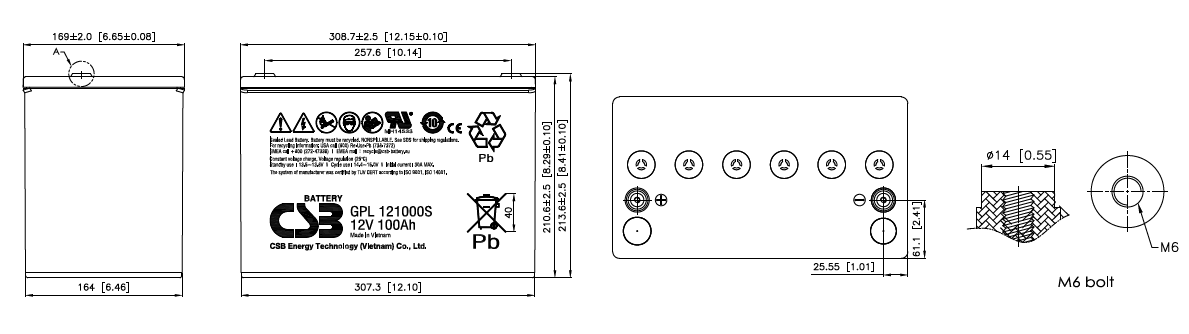

Dimensions
Length
308.7
Width
169
Height
210.6
Height (full)
213.6

Direct current discharge: А (25°С)
Uк / Tdischarge | 5 min | 10 min | 15 min | 30 min | 60 min | 90 min | 2 h | 3 h | 5 h | 8 h | 10 h | 20 h |
1.67 V | 311 | 222 | 183 | 113 | 66.9 | 48.2 | 37.9 | 26.9 | 17.3 | 11.5 | 9.48 | 5.03 |
1.75 V | 246 | 196 | 171 | 106 | 65.2 | 47.4 | 37.3 | 26.6 | 17.1 | 11.4 | 9.36 | 4.97 |
1.80 V | 202 | 179 | 155 | 99.1 | 63.2 | 46.1 | 36.3 | 26.0 | 16.7 | 11.1 | 9.18 | 4.89 |
Constant power discharge: W/BLOCK (25°С)
Uк / Tdischarge | 5 min | 10 min | 15 min | 30 min | 60 min | 90 min | 2 h | 3 h | 5 h | 8 h | 10 h | 20 h |
1.67 V | 3250 | 2395 | 2003 | 1253 | 756 | 562 | 445 | 316 | 204 | 136 | 112 | 59.8 |
1.75 V | 2749 | 2183 | 1908 | 1189 | 734 | 554 | 440 | 313 | 201 | 134 | 111 | 59.2 |
1.80 V | 2387 | 2029 | 1764 | 1118 | 709 | 543 | 431 | 307 | 198 | 132 | 109 | 58.3 |
