WBR GPL 121000
WBR GPL 121000
Specification
Number of elements in the block
6
Rated voltage
12 V
Nominal capacity (C10)
100 Ah at 10-hour discharge to Uкон. 10.8 V at 25 °C
Weight
31.3 kg ± 3%
Maximum discharge current (5 sec)
1200 A
Internal resistance
4 mOhm
Operating temperature range
Discharge: from -40 °C to +60 °C, Charge: from -20 °C to +60 °C, Storage: from -40 °C to +60 °C
Rated operating temperature
25 °C
Charge voltage
13.5 - 13.8 V at 25 °C (темп. ком. -3 мВ/˚С/Эл.)
Maximum charge current
30 A
Charge voltage in cyclic mode
14.4 - 15.0 V at 25 °C (темп. ком. -5 мВ/˚С/Эл.)
Shelf life
to 6 months at 25 °C, without recharge*
Terminals
Под внутренний болт М8
Housing material
Shockproof ABS (acrylic butadiene styrene)
*The battery must be charged before use. At higher ambient temperatures, storage time is reduced

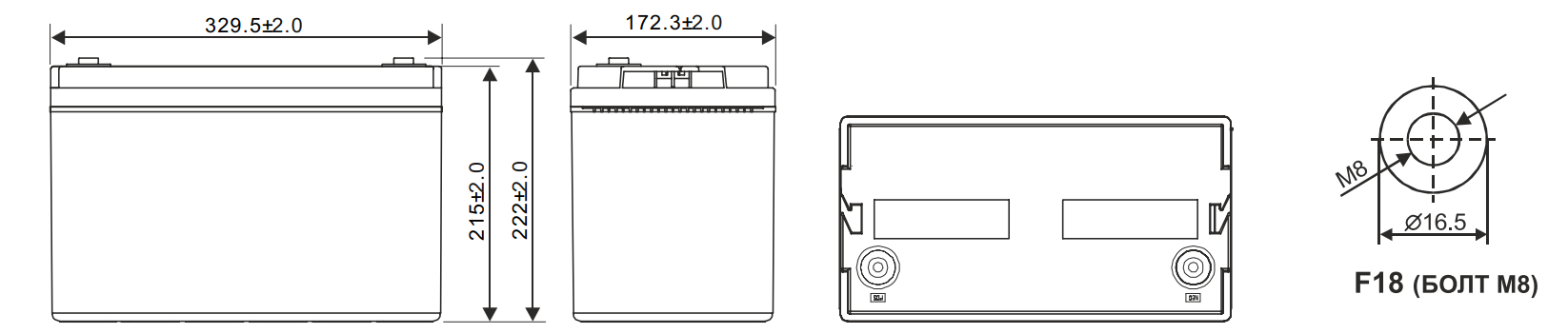

Dimensions
Length
329.5
Width
172.3
Height
215
Height (full)
222
Direct current discharge: А (25°С)
| Uk/Tdischarge | 10 min | 15 min | 20 min | 30 min | 60 min | 3 h | 5 h | 10 h | 20 h |
| 1.85 V | 186 | 168 | 134 | 113 | 61 | 28.3 | 17.1 | 9.81 | 5.13 |
| 1.80 V | 212 | 181 | 147 | 121 | 65.3 | 29.1 | 17.9 | 10.1 | 5.28 |
| 1.75 V | 235 | 191 | 163 | 127 | 69.5 | 29.8 | 18.7 | 10.3 | 5.42 |
| 1.70 V | 256 | 200 | 171 | 130 | 71.7 | 30.4 | 18.9 | 10.5 | 5.45 |
| 1.65 V | 274 | 206 | 178 | 132 | 72.8 | 30.7 | 19.1 | 10.7 | 5.48 |
| 1.60 V | 287 | 212 | 185 | 134 | 73.9 | 30.9 | 19.3 | 10.8 | 5.50 |
Constant power discharge: W/El (25°С)
| Uk/Tdischarge | 10 min | 15 min | 20 min | 30 min | 60 min | 3 h | 5 h | 10 h | 20 h |
| 1.85 V | 355 | 295 | 253 | 210 | 128 | 50.4 | 33.8 | 19.2 | 10.5 |
| 1.80 V | 388 | 327 | 275 | 220 | 134 | 53.7 | 35.5 | 19.9 | 10.8 |
| 1.75 V | 415 | 355 | 302 | 233 | 140 | 55.8 | 37.3 | 20.2 | 11.1 |
| 1.70 V | 440 | 368 | 315 | 236 | 143 | 57.6 | 37.7 | 20.5 | 11.2 |
| 1.65 V | 460 | 378 | 327 | 239 | 145 | 58.6 | 38.0 | 20.8 | 11.4 |
| 1.60 V | 480 | 385 | 336 | 241 | 147 | 59.2 | 38.3 | 21.0 | 11.6 |
