Аккумулятор WBR GPL 121000A оптом

Specification

Number of elements in the block

6

Rated voltage

12 V

Nominal capacity

100 Ah at 10-hour discharge to Uкон. 10.8 V at 25 °C

Weight

30.0 kg ± 3%

Maximum discharge current (5 sec)

1200 A

Internal resistance

3.5 mOhm

Operating temperature range

Discharge: from -40 °C to +60 °C, Charge: from -20 °C to +60 °C, Storage: from -40 °C to +60 °C

Rated operating temperature

25 °C

Charge voltage

13.5 - 13.8 V at 25 °C (темп. ком. -3 мВ/˚С/Эл.)

Maximum charge current

30 A

Charge voltage in cyclic mode

14.4 - 15.0 V at 25 °C (темп. ком. -5 мВ/˚С/Эл.)

Shelf life

to 6 months at 25 °C, without recharge*

Terminals

Под внутренний болт М6 (torque bolts 7-9 Нм)

Housing material

Shockproof ABS (acrylic butadiene styrene)

*The battery must be charged before use. At higher ambient temperatures, storage time is reduced
*The content may be changed for improvement without prior notice, it is not a public offer.
*The appearance of the product may differ from that shown on the website.

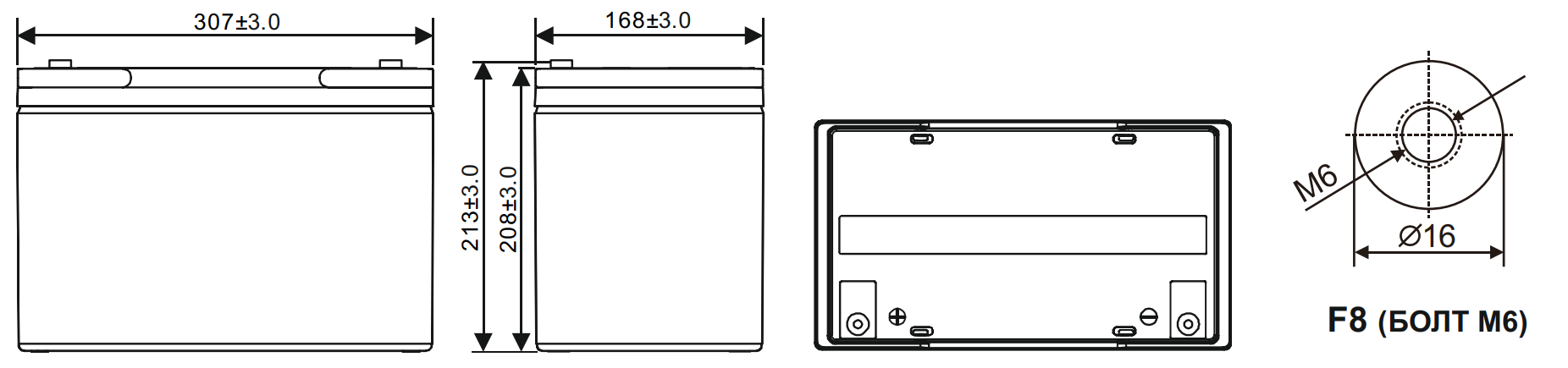

Dimensions

Length

307

Width

168

Height

208

Height (full)

213

307

168

208

213

Direct current discharge: А (25°С)

Uk / Tdischarge	5 min	10 min	15 min	20 min	30 min	60 min	90 min	2 h	3 h	4 h	5 h	10 h	20 h
1.85 V	250	205	166	145	98.5	60.0	48.1	36.2	27.9	18.4	15.6	9.70	5.07
1.80 V	290	235	186	155	105	62.2	49.5	37.2	28.8	19.4	16.5	10.0	5.23
1.75 V	320	260	201	162	110	64.1	50.5	38.1	29.4	20.1	17.2	10.2	5.36
1.70 V	335	279	211	167	114	65.9	51.0	38.6	29.7	20.3	17.7	10.4	5.38
1.67 V	348	286	216	171	118	67.2	51.2	39.0	30.0	20.5	18.0	10.5	5.40
1.65 V	353	291	221	175	122	68.5	51.4	39.3	30.2	20.6	18.2	10.6	5.42
1.60 V	358	294	225	178	126	69.6	51.6	39.5	30.4	20.7	18.4	10.7	5.44

Constant power discharge: W/El (25°С)

Uk / Tdischarge	5 min	10 min	15 min	20 min	30 min	60 min	90 min	2 h	3 h	4 h	5 h	10 h	20 h
1.85 V	490	425	319	276	193	89.8	87.5	68.3	52.6	35.1	33.8	18.9	10.3
1.80 V	545	450	349	289	203	100	92.0	71.6	54.5	37.2	35.5	19.5	10.6
1.75 V	575	468	374	300	210	109	92.9	74.2	55.5	39.2	36.7	19.9	10.9
1.70 V	600	485	384	305	218	117	93.3	75.1	56.5	40.4	37.0	20.1	11.1
1.67 V	605	490	394	308	222	124	93.5	75.8	57.3	41.6	37.3	20.3	11.2
1.65 V	610	495	402	310	227	131	93.7	76.5	58.1	42.4	37.5	20.5	11.3
1.60 V	625	500	410	312	230	138	93.8	77.0	58.8	43.2	37.7	20.7	11.4
