Specification
Rated voltage
12 V (6 elements in the block)
Capacity
330 Vт/Эл at 15-minute discharge to Uкон. - 1.67 W/El at 25 °С, 100 Ah at 20-hour discharge to Uкон. - 1.75 W/El at 25 °С
Weight
29.6 kg
Operating temperature range
Discharge: from -15 °С to +50 °С, Charge: from -15 °С to +40 °С, Storage: from -15 °С to +40 °С, Working temperature: 25 °С
Maximum discharge current
800 A (5 sec)
Internal resistance
3.5 mOhm
Short circuit current
2386 А
Maximum charge current
33.0 A
Charge voltage
13.5 - 13.8 V at 25 °С
Charge voltage in equalization mode
14.4 - 15.0 V at 25 °С
Terminals
for bolt M6 (torque - 5.1 ± 1.0 Нм)
Self-discharge
Less 10% for 90 days. Can be stored without recharging for more than 6 months at +25 °C*
Housing material
Shockproof, refractory PP (UL94 V-0)
*The battery must be charged before use. At higher ambient temperatures, storage time is reduced

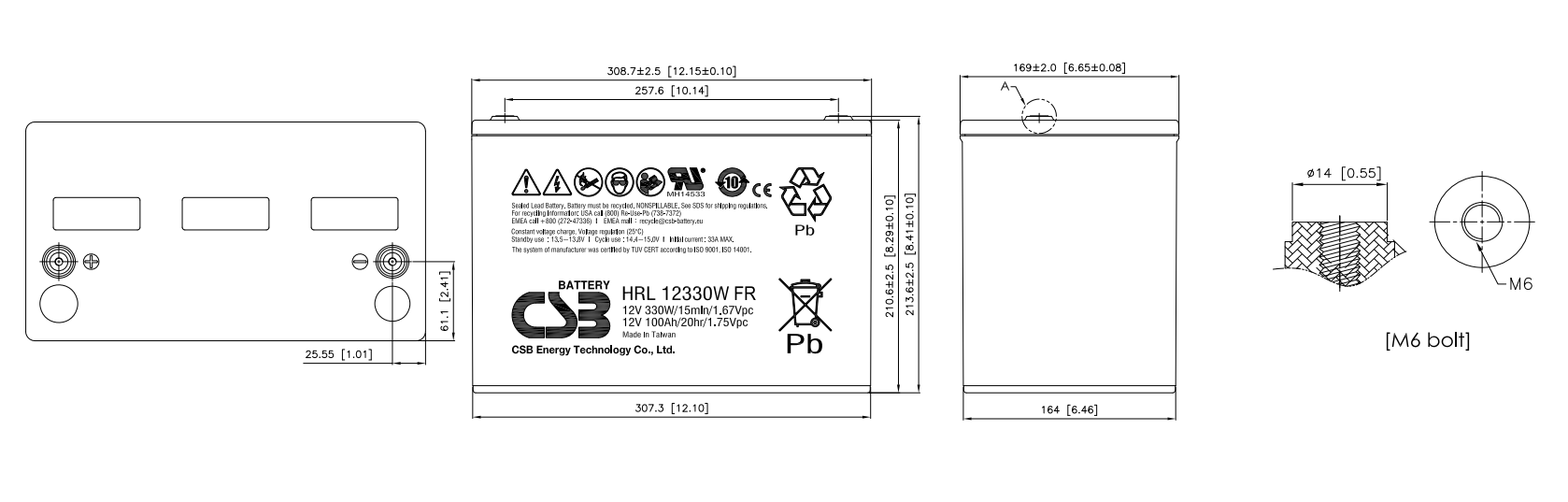

Dimensions
Length
308.7
Width
169
Height
210.6
Height (full)
213.6
Direct current discharge: А (25°С)
| Uк / Tdischarge | 2 min | 5 min | 10 min | 15 min | 20 min | 30 min | 45 min | 60 min | 90 min | 5 h | 10 h | 20 h |
| 1.60 V | 530 | 409 | 271 | 202 | 162 | 119 | 86.0 | 68.4 | 49.6 | 18.7 | 10.0 | 5.16 |
| 1.67 V | 482 | 369 | 256 | 196 | 158 | 117 | 85.1 | 67.9 | 49.4 | 18.6 | 9.91 | 5.12 |
| 1.70 V | 454 | 350 | 248 | 191 | 155 | 116 | 84.4 | 67.5 | 49.3 | 18.5 | 9.86 | 5.10 |
| 1.75 V | 405 | 317 | 230 | 181 | 149 | 112 | 82.6 | 66.4 | 48.9 | 18.2 | 9.74 | 5.06 |
| 1.80 V | 337 | 273 | 206 | 168 | 139 | 106 | 79.1 | 64.1 | 47.7 | 17.8 | 9.51 | 4.97 |
| 1.85 V | 252 | 234 | 180 | 150 | 125 | 97.1 | 73.2 | 59.9 | 45.1 | 17.0 | 9.09 | 4.77 |
Constant power discharge: W/BLOCK (25°С)
| Uк / Tdischarge | 2 min | 5 min | 10 min | 15 min | 20 min | 30 min | 45 min | 60 min | 90 min | 5 h | 10 h | 20 h |
| 1.60 V | 4597 | 3930 | 2870 | 2187 | 1772 | 1318 | 972 | 784 | 578 | 217 | 117 | 61.4 |
| 1.67 V | 4397 | 3761 | 2737 | 2131 | 1738 | 1304 | 965 | 779 | 576 | 216 | 116 | 61.0 |
| 1.70 V | 4285 | 3597 | 2656 | 2093 | 1713 | 1292 | 958 | 775 | 575 | 216 | 116 | 60.9 |
| 1.75 V | 4043 | 3300 | 2485 | 2009 | 1656 | 1260 | 941 | 764 | 571 | 214 | 115 | 60.5 |
| 1.80 V | 3660 | 2993 | 2276 | 1883 | 1564 | 1204 | 907 | 742 | 559 | 210 | 113 | 59.6 |
| 1.85 V | 2976 | 2589 | 2042 | 1676 | 1416 | 1116 | 850 | 700 | 534 | 202 | 108 | 57.6 |
