WBR HRL12560W
WBR HRL12560W
Specification
Rated voltage
12 V (6 elements in the block)
Rated power
560 Vт/Эл at 15-мин. разр. to Uкон. -1.6 W/El at 25 ˚С
Nominal capacity (С20)
150.0 Ah at 20-hour discharge to Uкон. - 1.75 W/El at 25 ˚С
Weight
45 kg ± 3%
Maximum discharge current (5 sec)
1400 A
Internal resistance
2.5 mOhm
Operating temperature range
Discharge: from -40 °C to +60 °C, Charge: from -20 °C to +60 °C, Storage: from -40 °C to +60 °C
Optimal operating temperature
25 °C
Charge voltage
13.5 - 13.8 V at 25 °C (темп. комп. -3 мВ/˚С/Эл.)
Maximum charge current
45 A at 25 °C
Charge voltage in cyclic mode
14.1 - 14.4 V at 25 °C (темп. комп. -5 мВ/˚С/Эл.)
Short circuit current
3850 А (согласно IEC 60896-21-22)
Shelf life
Батареи WBR серии HRL can be stored to 6 months at 25 ˚С*
Полюсные выводы
Под внутренний болт М8 (torque 12-20 Нм)
Housing material
Shockproof негорючий ABS (acrylic butadiene styrene)
Life time
12 years in buffer mode at 25 ˚С
*The battery must be charged before use. At higher ambient temperatures, storage time is reduced

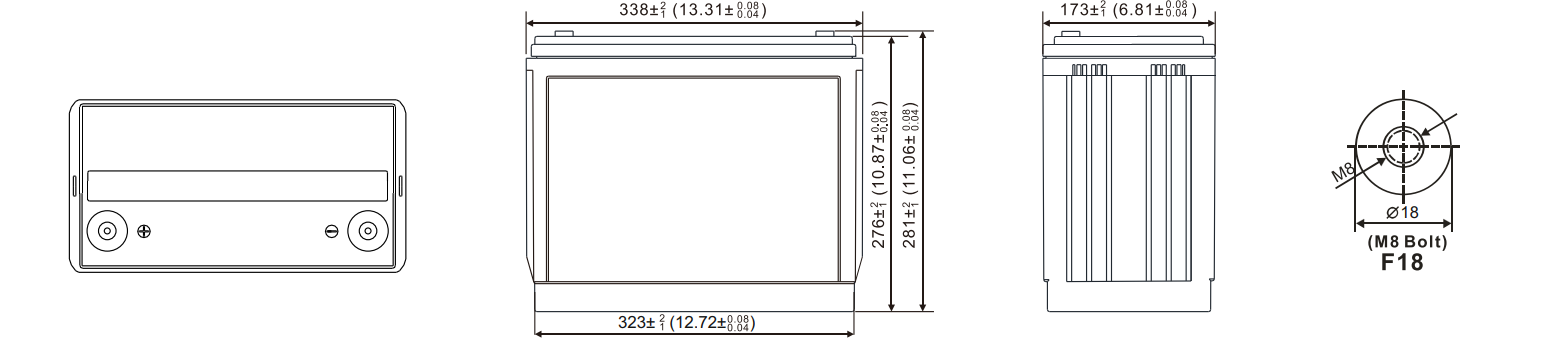

Dimensions
Length
338
Width
173
Height
276
Height (full)
281
Direct current discharge: А (25°С)
| Uk / Tdischarge | 2 min | 4 min | 5 min | 6 min | 8 min | 10 min | 15 min | 20 min | 30 min | 40 min | 45 min | 1 h | 1.5 h | 2 h | 3 h | 4 h | 5 h | 8 h | 10 h | 20 h |
| 1.85 V | 450 | 388 | 380 | 372 | 320 | 285 | 236 | 200 | 142 | 125 | 117 | 77.5 | 62.2 | 45.5 | 29.8 | 25.3 | 22.7 | 14.9 | 13.2 | 7.28 |
| 1.80 V | 530 | 463 | 445 | 427 | 358 | 332 | 261 | 219 | 157 | 131 | 122 | 79.4 | 64.0 | 48.4 | 33.0 | 27.5 | 24.6 | 15.0 | 14.0 | 7.40 |
| 1.75 V | 598 | 527 | 506 | 467 | 392 | 372 | 281 | 234 | 166 | 133 | 127 | 81.0 | 65.4 | 50.0 | 33.3 | 29.0 | 25.2 | 15.9 | 14.2 | 7.50 |
| 1.70 V | 661 | 564 | 527 | 506 | 422 | 380 | 301 | 242 | 171 | 135 | 128 | 81.2 | 65.8 | 50.8 | 33.6 | 29.7 | 25.5 | 16.0 | 14.3 | 7.51 |
| 1.67 V | 713 | 598 | 560 | 527 | 447 | 385 | 309 | 247 | 174 | 137 | 128 | 81.4 | 66.0 | 51.2 | 33.8 | 30.0 | 25.7 | 16.1 | 14.4 | 7.52 |
| 1.65 V | 765 | 630 | 580 | 542 | 467 | 388 | 314 | 252 | 177 | 138 | 129 | 81.6 | 66.2 | 51.6 | 34.0 | 30.2 | 25.8 | 16.1 | 14.4 | 7.53 |
| 1.60 V | 809 | 660 | 598 | 550 | 482 | 390 | 317 | 255 | 180 | 139 | 129 | 81.7 | 66.4 | 51.8 | 34.2 | 30.4 | 25.9 | 16.2 | 14.5 | 7.53 |
Constant power discharge: W/El (25°С)
| Uk / Tdischarge | 2 min | 4 min | 5 min | 6 min | 8 min | 10 min | 15 min | 20 min | 30 min | 40 min | 45 min | 1 h | 1.5 h | 2 h | 3 h | 4 h | 5 h | 8 h | 10 h | 20 h |
| 1.85 V | 808 | 800 | 698 | 672 | 637 | 570 | 475 | 426 | 300 | 245 | 234 | 151 | 101 | 84.3 | 66.2 | 49.3 | 42.8 | 26.3 | 24.0 | 12.7 |
| 1.80 V | 926 | 887 | 803 | 742 | 695 | 630 | 515 | 440 | 312 | 249 | 239 | 163 | 109 | 87.8 | 68.1 | 50.9 | 44.2 | 27.5 | 25.2 | 13.0 |
| 1.75 V | 1035 | 957 | 893 | 797 | 738 | 672 | 530 | 450 | 317 | 252 | 241 | 171 | 114 | 90.3 | 69.3 | 51.7 | 45.1 | 28.4 | 25.5 | 13.5 |
| 1.70 V | 1144 | 1012 | 963 | 837 | 773 | 705 | 543 | 457 | 322 | 254 | 243 | 173 | 119 | 91.6 | 70.1 | 52.1 | 45.4 | 28.9 | 25.7 | 13.7 |
| 1.67 V | 1234 | 1052 | 1023 | 877 | 801 | 738 | 553 | 462 | 325 | 256 | 245 | 175 | 124 | 92.5 | 70.5 | 52.4 | 45.7 | 29.4 | 25.8 | 13.8 |
| 1.65 V | 1324 | 1082 | 1063 | 892 | 819 | 751 | 558 | 465 | 328 | 257 | 246 | 176 | 127 | 93.3 | 70.7 | 52.6 | 45.9 | 29.7 | 25.9 | 13.9 |
| 1.60 V | 1400 | 1112 | 1100 | 907 | 834 | 761 | 562 | 468 | 330 | 258 | 247 | 177 | 130 | 93.8 | 70.9 | 52.8 | 46.1 | 30.0 | 25.9 | 14.0 |
