WBR HRL12450W
WBR HRL12450W
Specification
Rated voltage
12 V (6 elements in the block)
Rated power
450 Vт/Эл at 15-мин. разр. to Uкон. -1.60 W/El at 25 ˚С
Nominal capacity (С20)
115.0 Ah at 20-hour discharge to U - 1.75 V/эл at 25 ˚С
Weight
34 kg ± 3%
Maximum discharge current (5 sec)
1100 A
Internal resistance
3.4 mOhm
Operating temperature range
Discharge: from -40 °C to +60 °C, Charge: from -20 °C to +60 °C, Storage: from -40 °C to +60 °C
Optimal operating temperature
25 °C
Charge voltage
13.5 - 13.65 V at 25 °C (темп. комп. -3 мВ/˚С/Эл.)
Maximum charge current
33 A
Charge voltage in cyclic mode
14.10 - 14.40 V at 25 °C (темп. комп. -5 мВ/˚С/Эл.)
Short circuit current
4225 А (согласно IEC 60896-21-22)
Shelf life
Батареи WBR серии HRL can be stored to 6 months at 25 ˚С*
Полюсные выводы
Под внутренний болт М6 (torque 7-10 Нм)
Housing material
Shockproof негорючий ABS (acrylic butadiene styrene)
Life time
12 years in buffer mode at 25 ˚С
*The battery must be charged before use. At higher ambient temperatures, storage time is reduced

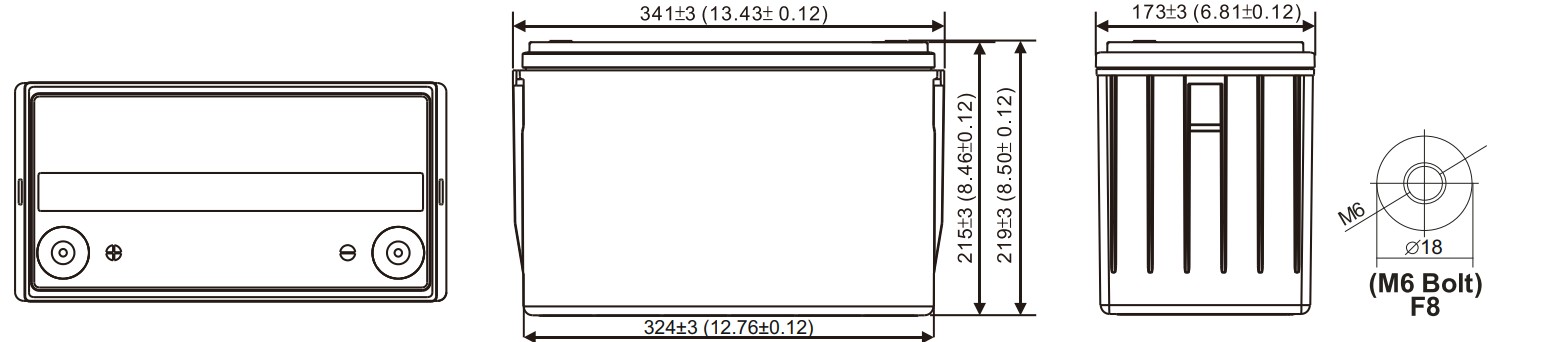

Dimensions
Length
341
Width
173
Height
215
Height (full)
216
Direct current discharge: А (25°С)
| Uк / Tdischarge | 2 min | 4 min | 5 min | 6 min | 8 min | 10 min | 15 min | 20 min | 30 min | 40 min | 45 min | 1 h | 1.5 h | 2 h | 3 h | 4 h | 5 h | 8 h | 10 h | 20 h |
| 1.85 V | 375 | 343 | 330 | 302 | 260 | 232 | 196 | 157 | 120 | 96.4 | 91.8 | 69.5 | 45.5 | 40.0 | 28.5 | 22.2 | 16.9 | 11.6 | 9.75 | 5.27 |
| 1.80 V | 454 | 402 | 384 | 342 | 287 | 253 | 206 | 171 | 123 | 101 | 96.0 | 71.0 | 50.6 | 41.7 | 31.3 | 22.7 | 17.2 | 12.1 | 10.2 | 5.44 |
| 1.75 V | 506 | 456 | 422 | 377 | 316 | 278 | 215 | 179 | 126 | 106 | 98.0 | 72.5 | 53.2 | 43.1 | 31.8 | 23.4 | 17.9 | 12.2 | 10.5 | 5.75 |
| 1.70 V | 550 | 503 | 452 | 392 | 327 | 288 | 224 | 181 | 129 | 109 | 99.5 | 73.9 | 54.1 | 43.3 | 32.0 | 24.1 | 18.7 | 12.3 | 10.7 | 5.76 |
| 1.67 V | 580 | 520 | 477 | 397 | 338 | 298 | 231 | 183 | 131 | 110 | 101 | 75.2 | 54.6 | 43.4 | 32.1 | 24.6 | 18.7 | 12.4 | 10.8 | 5.76 |
| 1.65 V | 610 | 531 | 492 | 402 | 346 | 304 | 238 | 184 | 133 | 111 | 102 | 76.5 | 54.9 | 43.5 | 32.2 | 24.8 | 18.7 | 12.4 | 10.8 | 5.77 |
| 1.60 V | 635 | 543 | 500 | 405 | 353 | 311 | 245 | 185 | 135 | 112 | 103 | 77.5 | 55.2 | 43.6 | 32.3 | 25.0 | 18.8 | 12.5 | 10.9 | 5.77 |
Constant power discharge: W/El (25°С)
| Uк / Tdischarge | 2 min | 4 min | 5 min | 6 min | 8 min | 10 min | 15 min | 20 min | 30 min | 40 min | 45 min | 1 h | 1.5 h | 2 h | 3 h | 4 h | 5 h | 8 h | 10 h | 20 h |
| 1.85 V | 695 | 640 | 612 | 555 | 500 | 455 | 371 | 310 | 228 | 191 | 183 | 138 | 88.2 | 77.8 | 58.8 | 41.5 | 35.7 | 22.0 | 19.1 | 10.5 |
| 1.80 V | 790 | 721 | 675 | 630 | 552 | 503 | 424 | 321 | 236 | 206 | 191 | 143 | 91.4 | 81.4 | 60.0 | 41.8 | 36.6 | 22.6 | 19.6 | 10.9 |
| 1.75 V | 883 | 780 | 738 | 705 | 579 | 518 | 439 | 329 | 244 | 208 | 193 | 145 | 92.9 | 82.5 | 60.7 | 42.4 | 37.0 | 22.8 | 20.0 | 11.1 |
| 1.70 V | 952 | 819 | 775 | 734 | 604 | 533 | 441 | 332 | 247 | 210 | 195 | 146 | 94.1 | 82.6 | 61.1 | 42.8 | 37.3 | 22.8 | 20.3 | 11.3 |
| 1.67 V | 1015 | 858 | 805 | 758 | 622 | 547 | 444 | 335 | 249 | 212 | 197 | 146 | 94.6 | 82.6 | 61.4 | 43.2 | 37.5 | 22.9 | 20.6 | 11.5 |
| 1.65 V | 1074 | 888 | 825 | 768 | 626 | 560 | 447 | 338 | 250 | 213 | 199 | 146 | 94.9 | 82.7 | 61.6 | 43.6 | 37.7 | 22.9 | 20.8 | 11.6 |
| 1.60 V | 1110 | 918 | 835 | 778 | 630 | 570 | 450 | 340 | 251 | 214 | 200 | 147 | 95.2 | 82.7 | 61.7 | 43.8 | 37.9 | 23.0 | 21.0 | 11.7 |
